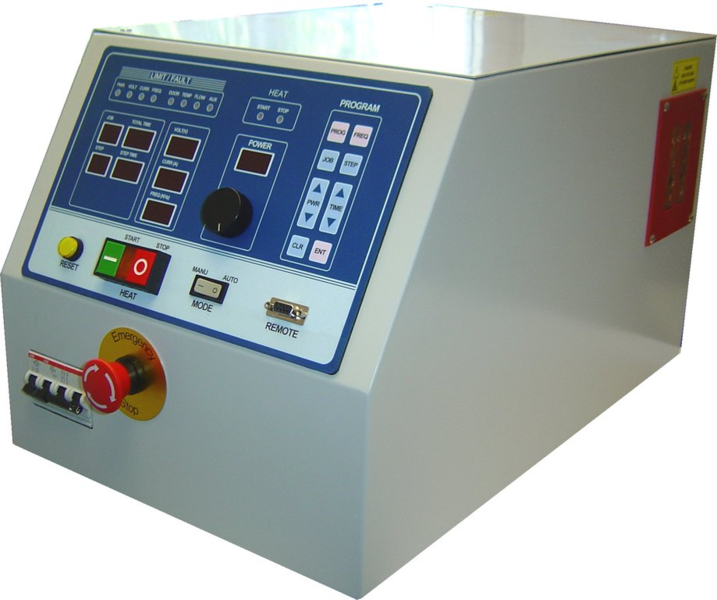

3kW Power Supply
- Internal heat station
- Digital Display
- Programmable Interface
- Water Cooled
- 208-240V single phase
INPUT
AC Voltage: 208-240V, 50-60 Hz
AC Current: 14.5 A @ 230V
AC Power: 3.8kVA
OUTPUT:
Frequency Range: 135-400kHz
Maximum Power: 3kW
Maximum Apparent Power: 6.6KVA@230V
Minimum Power Factor: 0.50
Duty Cycle: 100%
Maximum Voltage: 350 Vrms
DIMENSIONS:
Height: 12.7”
Width: 11.7”
Depth: 20.5”
Weight: 43.5 lbs.
5kW Power Supply
- Internal heat station
- Digital Display
- Programmable Interface
- Water Cooled
- 208-240V Three Phase
- 408-480V Three Phase
INPUT 240VAC OUTPUT:
AC Voltage: 208-240V, 3 Phase 50-60 Hz Frequency Range: 35-100kHz
AC Current: 14.5 A @ 230V Maximum Power: 5kW
AC Power: 3.8kVA Maximum Apparent Power: 10KVA@230V
Minimum Power Factor: 0.34
Duty Cycle: 100%
Maximum Voltage: 350Vrms
DIMENSIONS:
Height.............14”
Width..............14.5”
Depth............. 23.5”
Weight............55 lbs.
INPUT 480VAC OUTPUT:
AC Voltage: 440-480V, 3 Phase 50-60 Hz Frequency Range: 135-400kHz
AC Current: 7 A @ 480V Maximum Power: 5kW
AC Power: 10kVA Maximum Apparent Power: 5.7KVA@480V
Minimum Power Factor: 0.34
Duty Cycle: 100%
Maximum Voltage: 500Vrms
DIMENSIONS:
Height.............14”
Width..............14.5”
Depth............. 23.5”
Weight............55 lbs.
7.5kW Power Supply
- Internal heat station
- Digital Display
- Programmable Interface
- Water Cooled
- 208-240V Three Phase
- 440-480V Three Phase
INPUT 240VAC OUTPUT:
AC Voltage: 208-240V, 3 Phase 50-60Hz Frequency Range: 35-100kHz
AC Current: 21.8 A @ 230V Maximum Power: 7.5kW
AC Power: 8.7kVA Maximum Apparent Power: 15KVA@230V
Minimum Power Factor: 0.54
Duty Cycle: 100%
Maximum Voltage: 350Vrms
DIMENSIONS:
Height.............14”
Width..............14.5”
Depth............. 23.5”
Weight............55. lbs.
INPUT 480VAC OUTPUT:
AC Voltage: 440-480V, 3 Phase 50-60 Hz Frequency Range: 135-400kHz
AC Current: 10.5 A @ 480V Maximum Power: 7.5kW
AC Power: 15kVA Maximum Apparent Power: 8.7KVA@480V
Minimum Power Factor: 0.50
Duty Cycle: 100%
Maximum Voltage: 500Vrms
DIMENSIONS:
Height.............14”
Width..............14.5”
Depth............. 23.5”
Weight............55. lbs.
10 kW Power Supply
- Internal heat station
- Digital Display
- Programmable Interface
- Water Cooled
- 208-240V Three Phase
INPUT 240VAC OUTPUT:
AC Voltage: 208-240V, 3 Phase 50-60Hz Frequency Range: 15-40kHz
AC Current: 28 A @ 230V Maximum Power: 10kW
AC Power: 11.1kVA Maximum Apparent Power: 20KVA@230V
Minimum Power Factor: 0.50
Duty Cycle: 100%
Maximum Voltage: 300Vrms
DIMENSIONS:
Height.............14”
Width..............33”
Depth............. 14.5”
Weight............95 lbs.

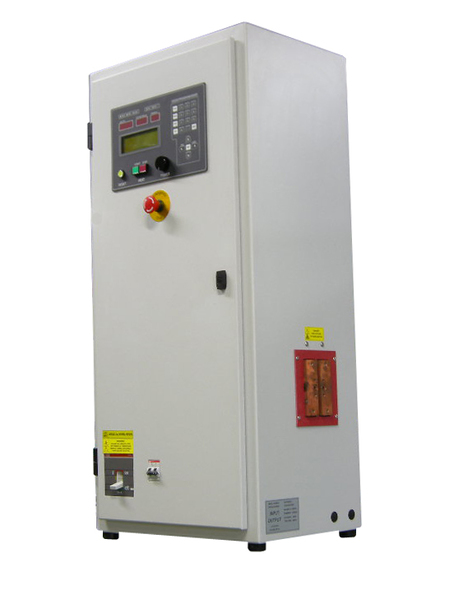

12.5kW Power Supply
- Internal heat station
- Digital Display
- Programmable Interface
- Right or Left Side Outputs
- 208-240V Three Phase
- 440-480V Three Phase
INPUT 240VAC OUTPUT:
AC Voltage: 208-240V, 3 Phase 50-60Hz Frequency Range: 35-100kHz
AC Current: 37 A @ 230V Maximum Power: 12.5kW
AC Power: 14.5kVA Maximum Apparent Power: 25KVA@230V
Minimum Power Factor: 0.50
Duty Cycle: 100%
Maximum Voltage: 350Vrms
DIMENSIONS:
Height.............44”
Width..............20”
Depth............. 15”
Weight............145 lbs.
INPUT 480VAC OUTPUT:
AC Voltage: 440-480V, 3 Phase 50-60 Hz Frequency Range: 135-400kHz
AC Current: 17.5 A @ 480V Maximum Power: 12.5kW
AC Power: 14.5kVA Maximum Apparent Power: 12.5KVA@480V
Minimum Power Factor: 0.50
Duty Cycle: 100%
Maximum Voltage: 500Vrms
DIMENSIONS:
Height.............44”
Width..............20”
Depth............. 15”
Weight............145 lbs.

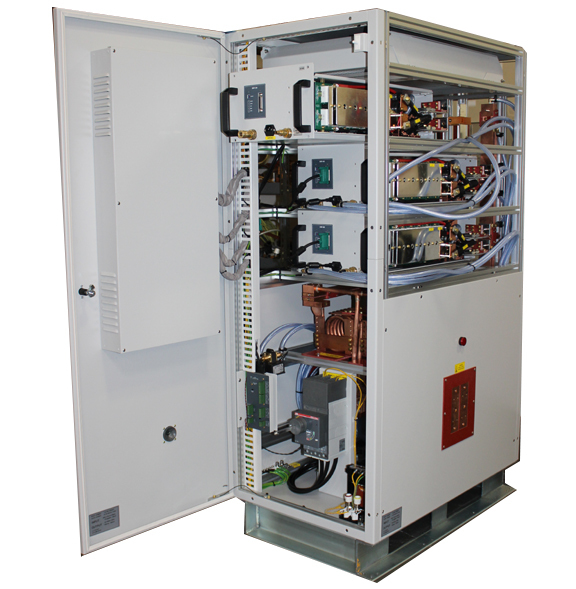

25kW Power Supply
Induction Power Supplies
Without proper induction power supplies in place for your induction heating procedures, your system will take longer to melt down metal and in some cases won’t melt at all without enough power. Don’t let this happen to your factory or industrial process. Get in contact with us here at Mend Tech Inc., and we will discuss exactly the gauge of induction power supplies you need to keep things running smoothly and effectively. Give us a call today, and we’ll start arranging the supplies we’ll be manufacturing for you.
